型號(hào)說(shuō)明
Standard Piston Accumulators - repairable
活塞式蓄能器規(guī)格與尺寸 ，工作壓力10-31.5Mpa
|
nominal volume公稱容積 L |
Mass 重量 KG |

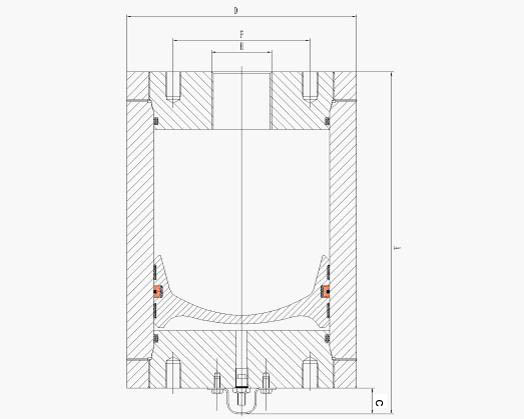

Dimensions 尺寸 |
||||||
|
D |
A |
C |
H |
F |
||||
|
0.5 |
2.6 |
90 |
260 |
28.6 |
G1/2 |
SAE16# |
無(wú) |
12 |
|
1 |
5 |
120 |
295 |
28.6 |
G1/2 |
SAE16# |
G1 1/4 |
12 |
|
2 |
9.8 |
120 |
410 |
28.6 |
G1/2 |
SAE16# |
G1 1/4 |
12 |
|
4 |
19.6 |
120 |
640 |
28.6 |
G1/2 |
SAE16# |
G1 1/4 |
12 |
|
5 |
24.5 |
120 |
755 |
28.6 |
G1/2 |
SAE16# |
G1 1/4 |
12 |
|
6 |
29.4 |
120 |
825 |
28.6 |
G1/2 |
SAE16# |
G1 1/4 |
12 |
|
10 |
29.4 |
120 |
1330 |
28.6 |
G1/2 |
SAE16# |
G1 1/4 |
12 |
|
20 |
29.4 |
240 |
880 |
26.5 |
G2 |
SAE24# |
2＂NPT |
25 |
|
32 |
125 |
240 |
1255 |
26.5 |
G2 |
SAE24# |
2＂NPT |
25 |
|
40 |
156 |
240 |
1510 |
26.5 |
G2 |
SAE24# |
2＂NPT |
25 |
|
50 |
195 |
240 |
1830 |
26.5 |
G2 |
SAE24# |
2＂NPT |
25 |
|
100 |
390 |
365 |
1715 |
41.5 |
G2 |
SAE24# |
2＂NPT |
39 |
